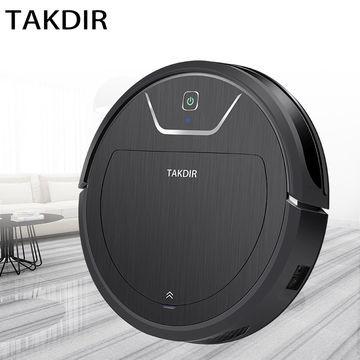

Wifi Home Robot vacuum cleaner with rnavigation auto vacuum sweep
mop
| del Number | V5S PRo | | Certification | CE/FCC/3C/CE ROHS/ MSDS | | Voltage | 14.8V | | Battery capacity | 2600mAh | | Working time | ≥90min(Quiet Mode) | | Support | OEM/ODM | | Navigation System | Germany Electronic Hawk INS | | Gift box size | 465*385*155mm | | Suction Power | 2000Pa | | Standby current consumption | About 85mA | | Mail box size | 470*400*158mm | | Working noise | ≤65dB | | Rated power | 28W | | Charging time | 4-6H | | Quality | 2 year |
| |
Model Remarks
1 Rated voltage 14.8V
2 Applicable voltage range DC12V---DC16.8V
3 Power mode Rechargeable lithium battery
(charging time is about 4-6 hours)
4 Battery charge and discharge cycles ≥300times
5 Working time ≥90min(Quiet Mode)
6 Rated power ≤28W
7 Operating
temperature range -10℃～45℃
8 Operating
humidity range ≤80RH
9 Standby current consumption About 85mA
10 Working noise ≤65dB(90CM distance)
11 suction 1800-2000pa(Laboratory Data)
12 Dust chamber capacity 600ML
13 Water Tank Capacity 350ML
14 Charging time 4-6h
15 Applicable voltage of charger Input: AC100 ~ 240V 50 / 60Hz
Output: DC19V 0.6A
16 Machine life ≤500-600 hours of continuous work
17 product size 320*320*78mm(Including wheel height)
18 Inspection height 80mm
19 Obstacle crossing height 15mm 越障高度
20 weight About 2.3Kg
21 Gift box size:465*385*155mm (Paper tray, folding box, with
handle)
22 Mail box size: 470*400*158mm
23 Out box size: 700*500*440mm (4pcs with mail box) /
610*485*405mm(4pcs without mail box)
24 Related certification: CE, RoHS, CCC, PSE, FCC.
TAKDIR Intelligent Electrical Apparatus Co., Ltd is a high and new
technology company providing service all over the globe. Since the
establishment, we focus on the research and development, production
and marketing of intelligent robot vacuum cleaner, intelligent
service robots, and window cleaning robots. All the products have
passed the domestic and overseas compulsory certification such as
CCC, UL, and CE, and meet the EU RoHS environmental protection
standards. TAKDIR has dived into the the R&D and production for
years. It has possessed more advanced robot technology and founded
the home robot R&D institution, leading the intelligent
technology industry and attaining over 10 patents
2020 Customized factory Automatic Floor Cleaning Robot with Tuya
APP robot cleaner
1. "S-shaped" positioning is currently the mainstream method. Its
characteristics are obvious: advantages: regular walking,
relatively short paths, high cleaning efficiency, and high
coverage.
Inertial navigation system (English: INS inertial navigation
system) The inertial navigation system uses a gyroscope and
accelerometer as the sensitive device to calculate the navigation
parameters. Based on ESLAM, a map navigation coordinate system and
German six-axis BOSCH gyroscope are used for precise navigation.
The coverage rate is as high as 98%, and it is clean and efficient.
Interstellar AM380S chip
With dedicated software and core algorithms, the sweeping robot is
more responsive. Intelligent partition planning, intelligent escape
from difficulties.
2. Dustbin / Dust container: 600ml large volumn
Triple filtering
a.Primary filter (Particulate matter) PM (particulate matter)
b. Fine filter sponge bacteria, dust
c. High efficiency air filter HEPA (High Efficiency Particulate Air
high efficiency air filter) filter hair (filter hair)
3.Three properties
a. Climbing up 25 ° Climbing 1.8c Obstacle crossing ability test:
Put 15mm wooden board 60 ~ 80cm directly in front of the machine,
you can climb up.
b. Smart escape
c. Protect yourself from falling
4.Electric control water tank and mopping pad
350ml, micro-sensing electric control technology, built-in mini
electric air pump, can mop up to 3 hours in a single time, and mop
up to 200 square meters
Large-area water-locking wipes: The mop has the same width as the
body, and can be used to mop up to 32cm in a single operation. The
body covers a large cleaning area and has high cleaning efficiency.
1-: Are your manufacturer and do you have experience?
We are factory who have 10 years experience.
2-: What certificates do you have for your products?
CE, ROHS, FCC, PSE, CCC, MSDS
3- Can you do OEM order?
Yes, welcome.
4- Can you do OEM/ODM order?what's your MOQ?
Yes, we do. Including customer logo & packing & User manual etc.
design
MOQ: 500pcs
5 - Does you support APP or Voice Language Customized? what's your
MOQ?
Yes, we do. contact us to get files.
MOQ: 1000pcs
6- What's your MOQ for regular order without logo?
Normally 100pcs
7- What's your Lead Time?
Sample: 3-5working days.
Small Quantity: normally in stock, contact us to check current
stock.
Mass Order: 30-40days depends on your order quantity.
5 - Package Informations:
1pcs Robot vacuum cleaner in a giftbox, 1 giftbox or 4 giftbox in a
master carton.
8 - What's your Payment Terms?
Robot Vacuum Cleaner Sample Payment:
- We accept payment by Alibaba Trade Assurance, T/T, ,PayPal etc;
Mass Order Payment:
- 30% advance payment by T/T; 70% balance by T/T or L/C before
delivery.
9- What's your Warranty?
Our Robot Vacuum Cleaner Support Software Remote Upgrade, we
provided customers with lifetime after sales service. Quality
problem warranty is 2 year.
